Honed cylinder tube is the most important material of manufacturing and repairing hydraulic cylinders.
Our factory produces honed steel cylinder tubes and skived roller burnished tubes used for hydraulic cylinder or pneumatic cylinder with high quality & good prices. Imperial sizes & metric sizes available. As one of the leading hydraulic cylinder honing tubes suppliers and manufacturers, Skyline has been producing and supplying honed tubes for nearly 30 years.
Honed cylinder tubing is known as hydraulic cylinder barrel also, usually it is produced by honing process or skiving & roller burnishing process, using “Suitable To Hone” Cold Drawn Seamless Tubes. The processing of the honed cylinder tube is determined by the size, mold available and the request of the customer.
Materials of our Honed cylinder Tubes:
Our honed cylinder tubes usually are made from grades SAE 1020, SAE 1026, E355 and ST52.3, we also produce honed cylinder tubes in other materials on customers’ request.
Size Range:
As the leading hydraulic cylinder honed tube suppliers, our factory produces honed cylinder tubes in a wide range of metric sizes and imperial sizes.
Inside Diameter 32mm to 600mm; Imperial sizes equally.
We supply our honed tubing in fixed length and random lengths, the max. Length our our honed tube is 14 meters.
Detailed specifications like below.
Type: Seamless, Hot Rolled, Cold Rolled, Cold Drawn
Material: ST52, CK45,4140, SCM440,16Mn,42355, Stainless Steel 304/316, Duplex 2205, etc.
Delivery Condition: BK, BK+S, GBK, NBK
Length: max 16m
Straightness: ≤ 0.5/1000
Roughness: 0.2-0.4 μm
Tolerance of outer diameter: DIN2391, EN10305, GB/T 1619
Internal diameter tolerance: H8, H9
Packing method: Anti-rust oil on inside and outside surface, plastic caps in both ends. Bundle with steel strip and PE sheet or wooden case.
Company Introduction
Our honed tube & chrome plated bar factory covers an area of 40,000 square meters and a building area of 30,000 square meters, of which the production plant area is 25,000 square meters. We produce cold drawn seamless tubes, honed tubes / honed steel tubing, hydraulic cylinder tubes of more than 20,000 tons, and we manufacture hydraulic piston rods and chrome plated tubes of 500 thousand meters.
Skyline Precision Steel Pipe Manufacturing Co., Ltd is one of the best China honed tube manufacturer and honed tube suppliers. We manufacture honed tube and chrome plated bar for hydraulic cylinder applications for nearly 30 years.
We have been exporting our honing cylinder tubes to customers in many countries for the applications of hydraulic cylinders for various machines, and other applications. We had gained very good reputation from our customers in China and abroad countries such as USA, Canada, Mexico, Colombia, Saudi Arabia, UAE, South Africa, Russia, Belarus, Thailand, Indonesia, Vietnam, Australia, Ukraine, Brazil, Turkey, Korea, New Zealand, Singapore, Kuwait and so on.
|
|

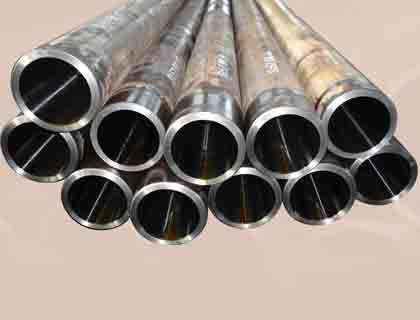

Honed cylinder tubes made of cold drawn seamless tubes for hydraulic cylinder applications Images
|
